SKU: AB380A

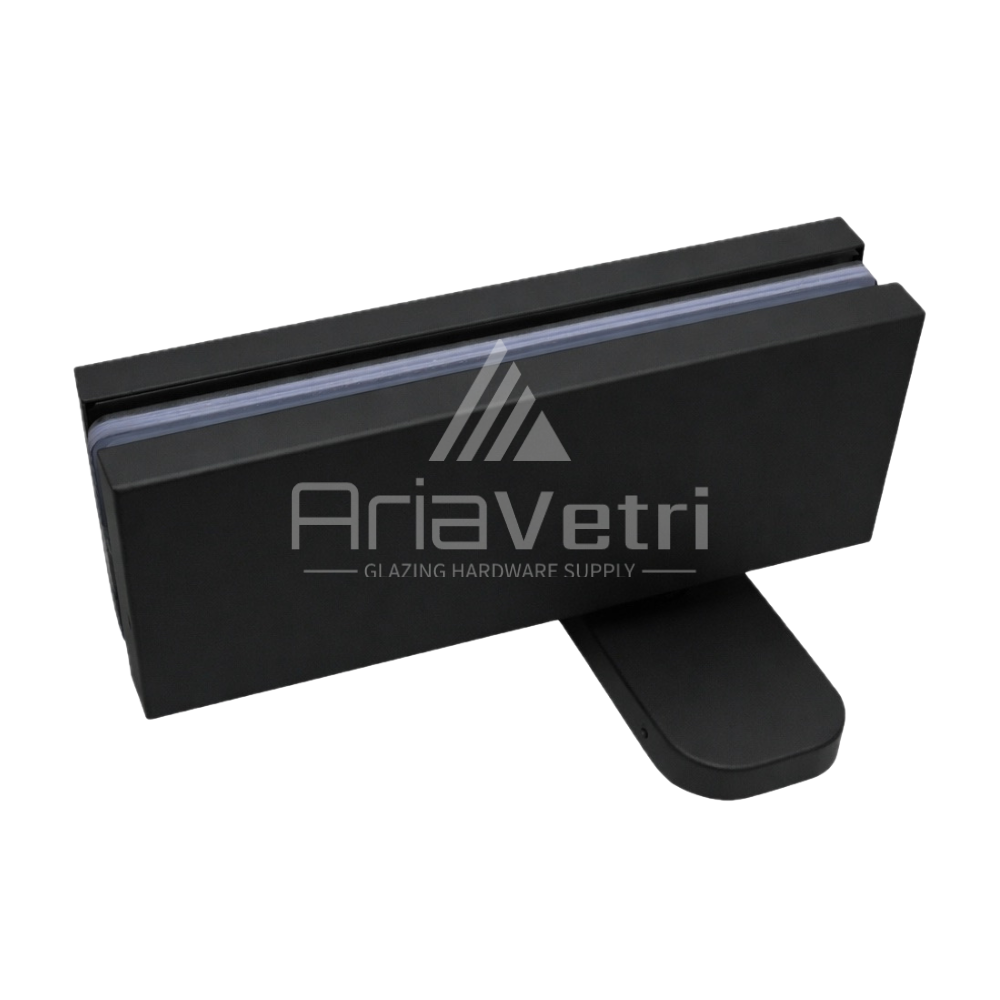

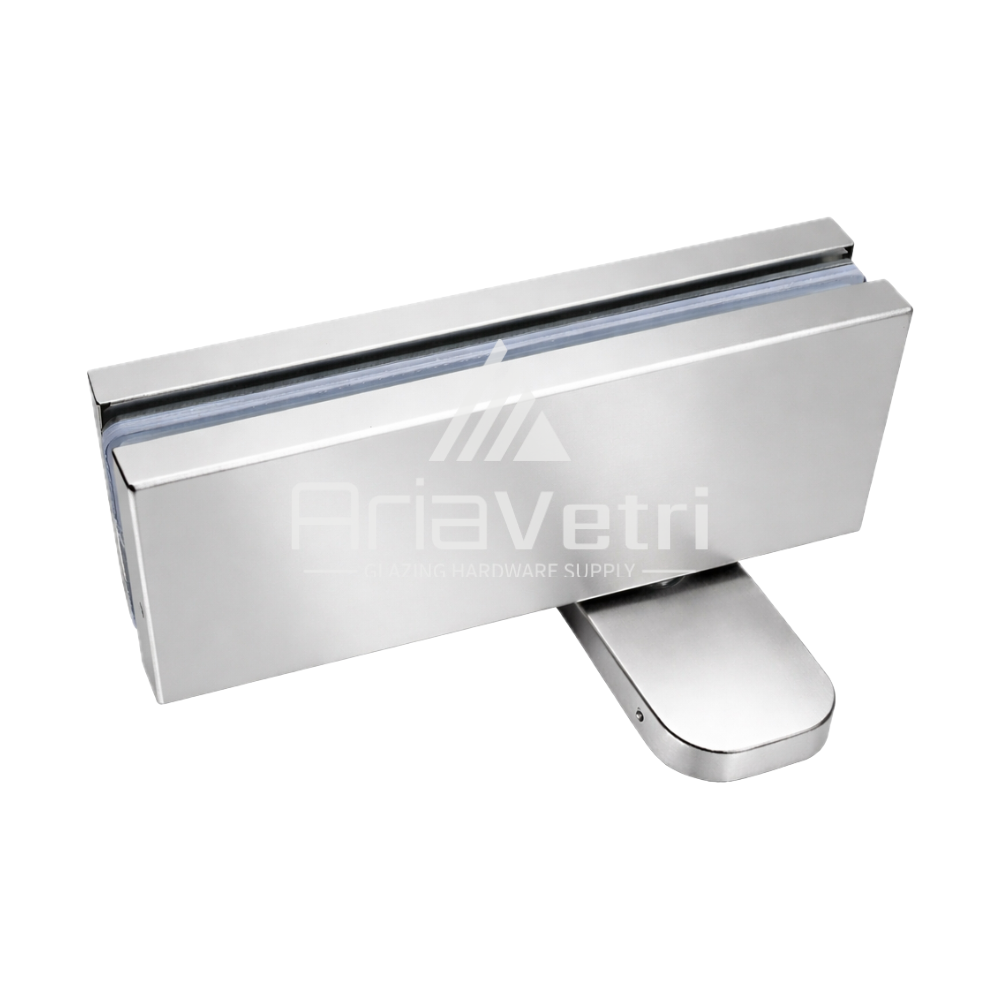

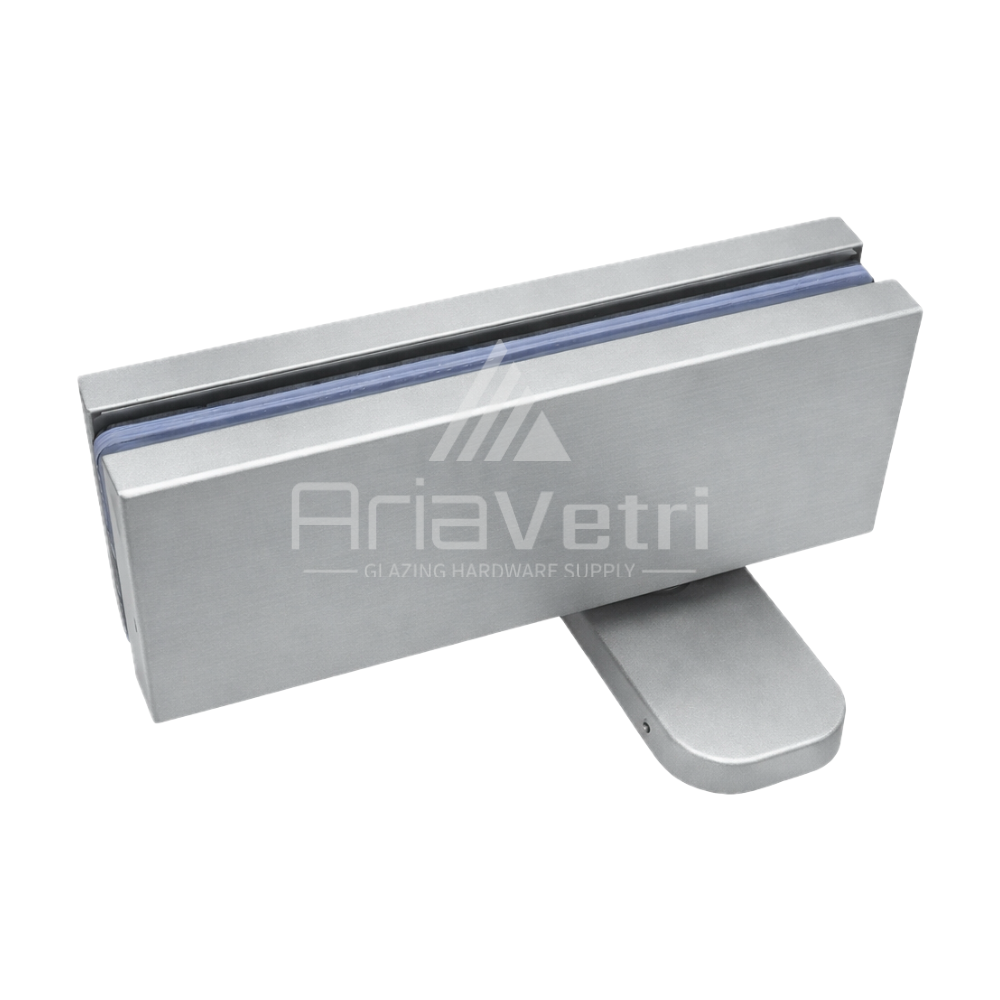

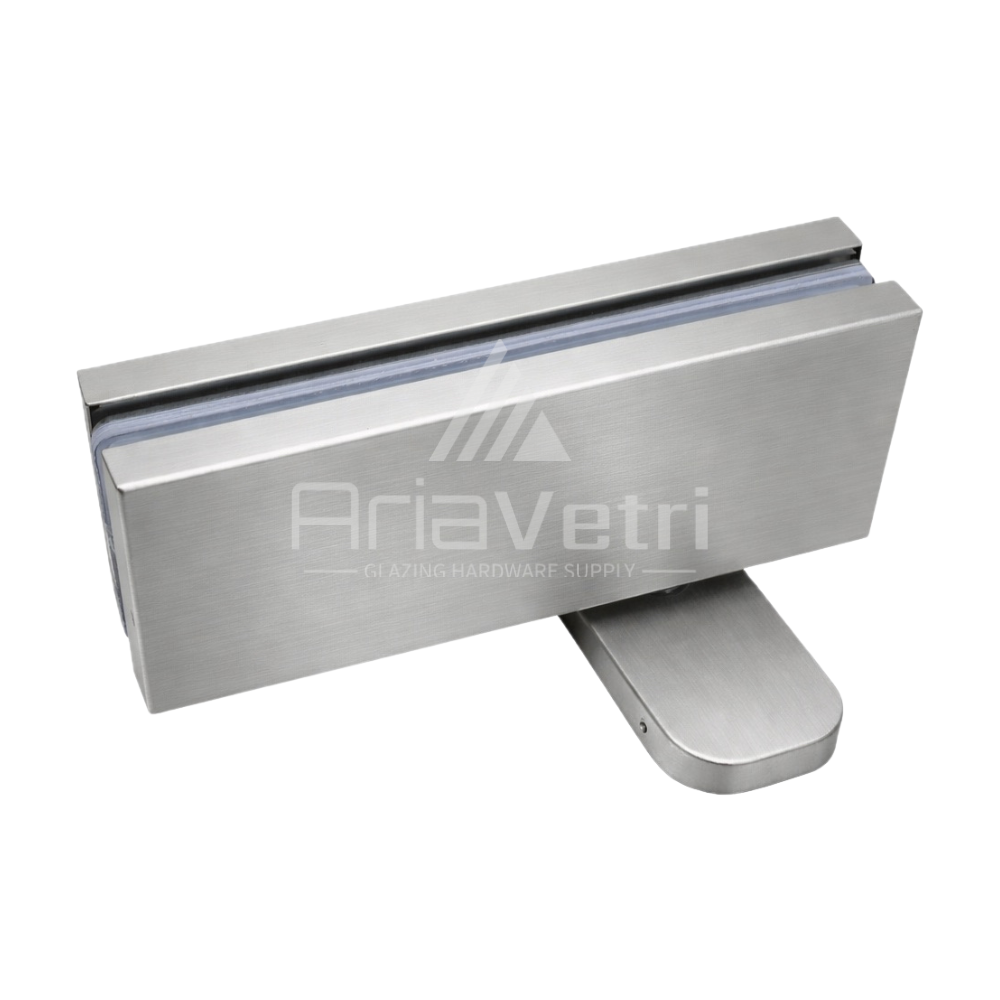

AB380 Hydraulic Patch Hinge - No Hold Open

Login for pricing
Shipping calculated at checkout.

Aria Vetri Hardware Hydraulic Patch Fittings have been specially designed for use with the AE201A top patches and do not require any overhead or floor closing devices. These fittings come with two adjustable screws to adjust the latching and swinging speed. They are medium duty for interior use and are suitable for doors of width 39" with a maximum weight of 220 lbs. Glass fabrication is required for the use of these patch fittings. Non-Hold Open

DO NOT USE WITH LAMINATED GLASS

Prop 65

This product may contain chemicals known to the State of California to cause cancer or reproductive harm. Visit P65Warnings.ca.gov for more information.


Color: Satin Anodized

Care information

Perform periodic maintenance to help maintain its factory finish.

Delivery and Shipping

Shipping weights are approximate. For shipping costs, add product to your cart and you will find the estimated shipping charges at the checkout.

Specifications

  • Glass Thickness: 3/8", 1/2"
  • Height: 2-3/4"
  • Width: 1-5/8"
  • Length: 7-3/16"
  • Max Door Width: 39"
  • Max Door Weight: 220 lbs
  • Pivot Setback: 2-9/16

Documents

Care Guide
