SKU: ADRC1236SA

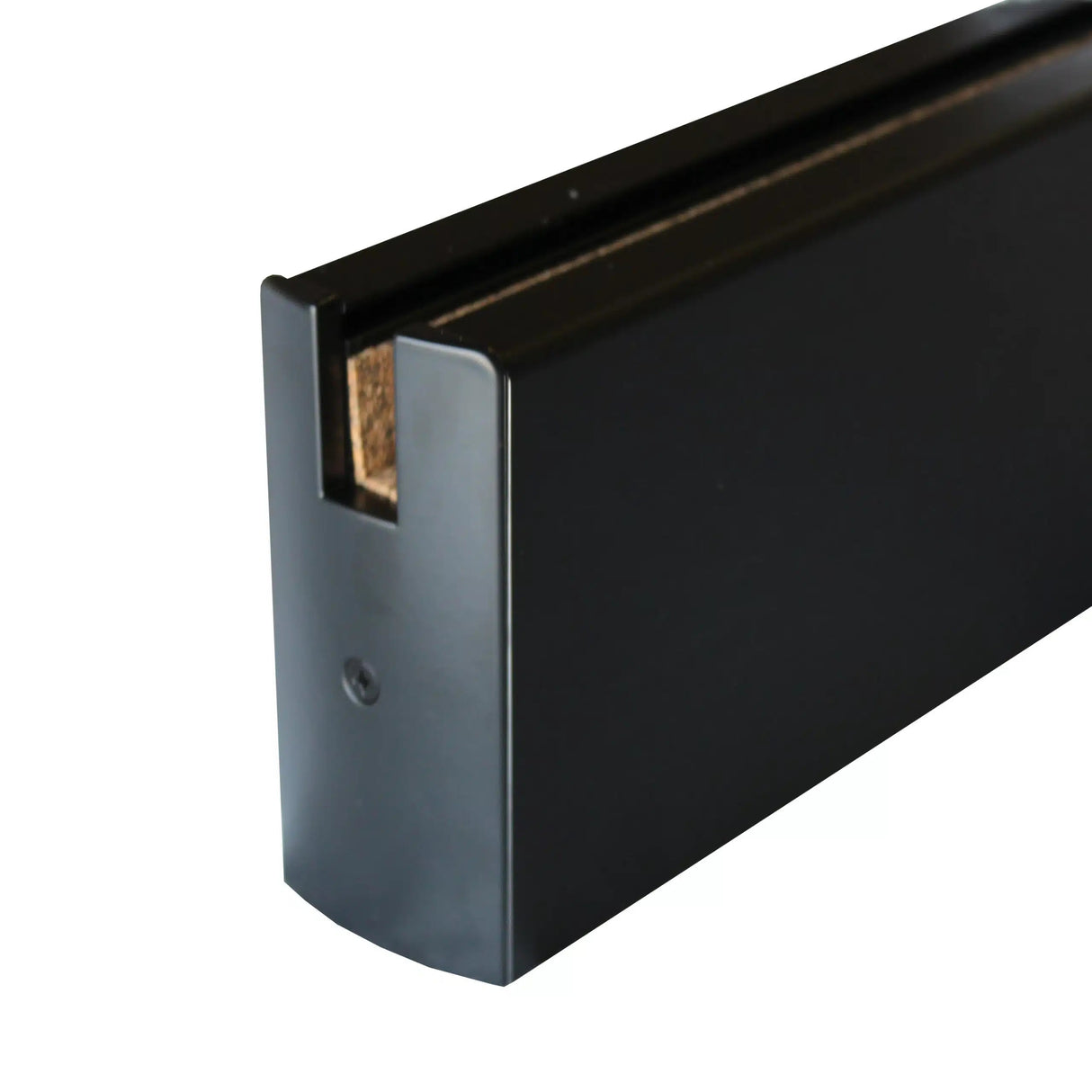

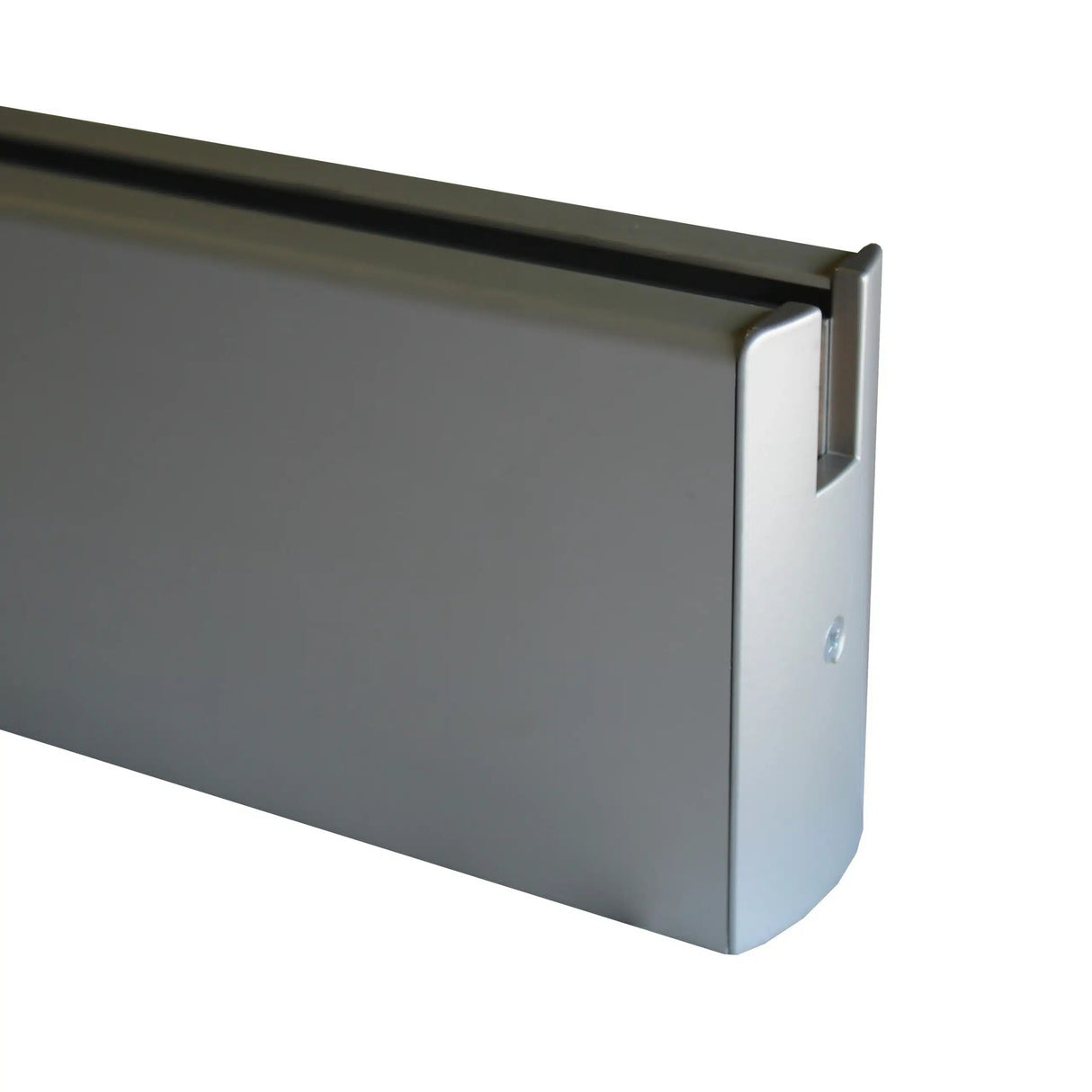

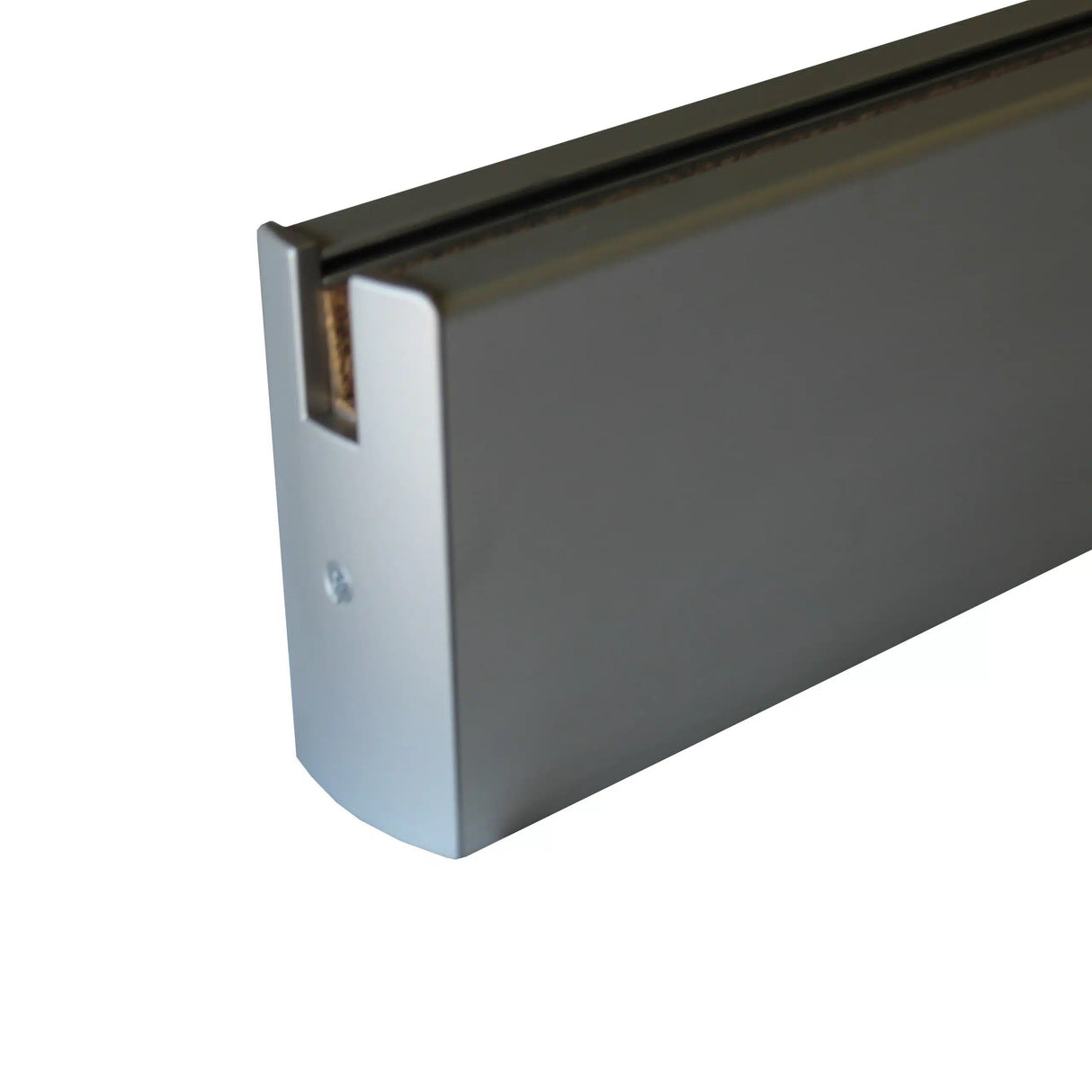

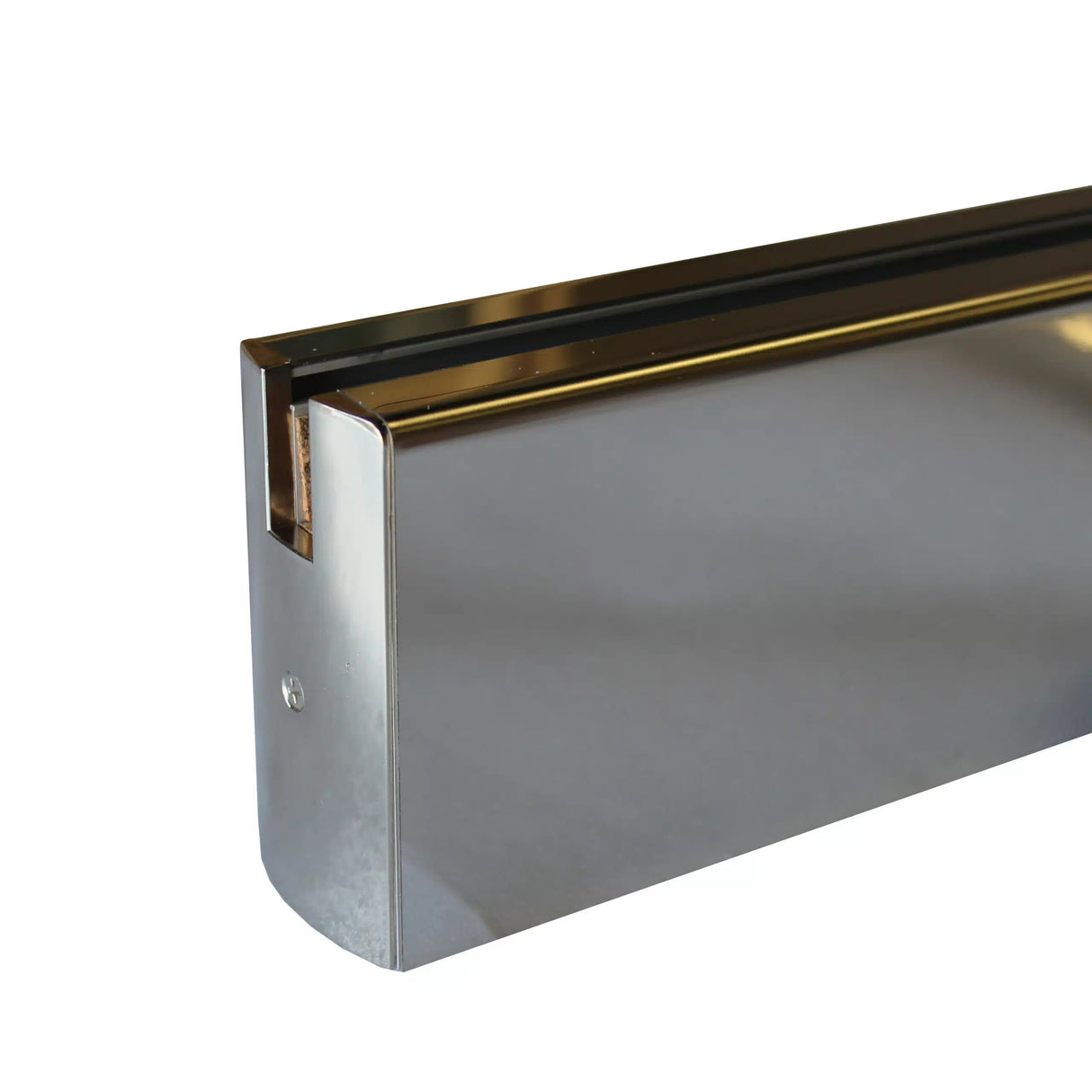

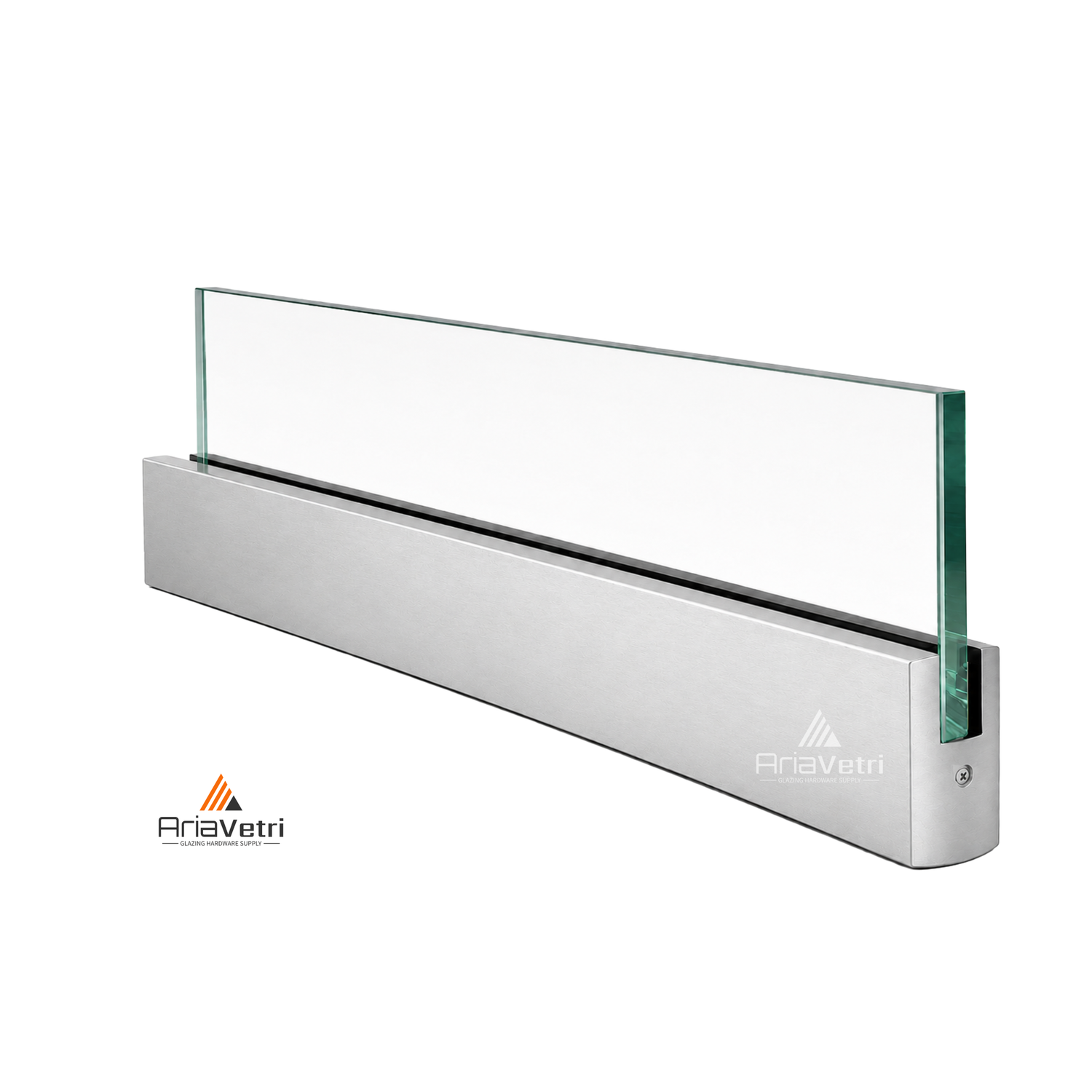

ADRC1236 4" Square Door Rail 35-3/4" With Closer No Lock

Login for pricing
Shipping calculated at checkout.

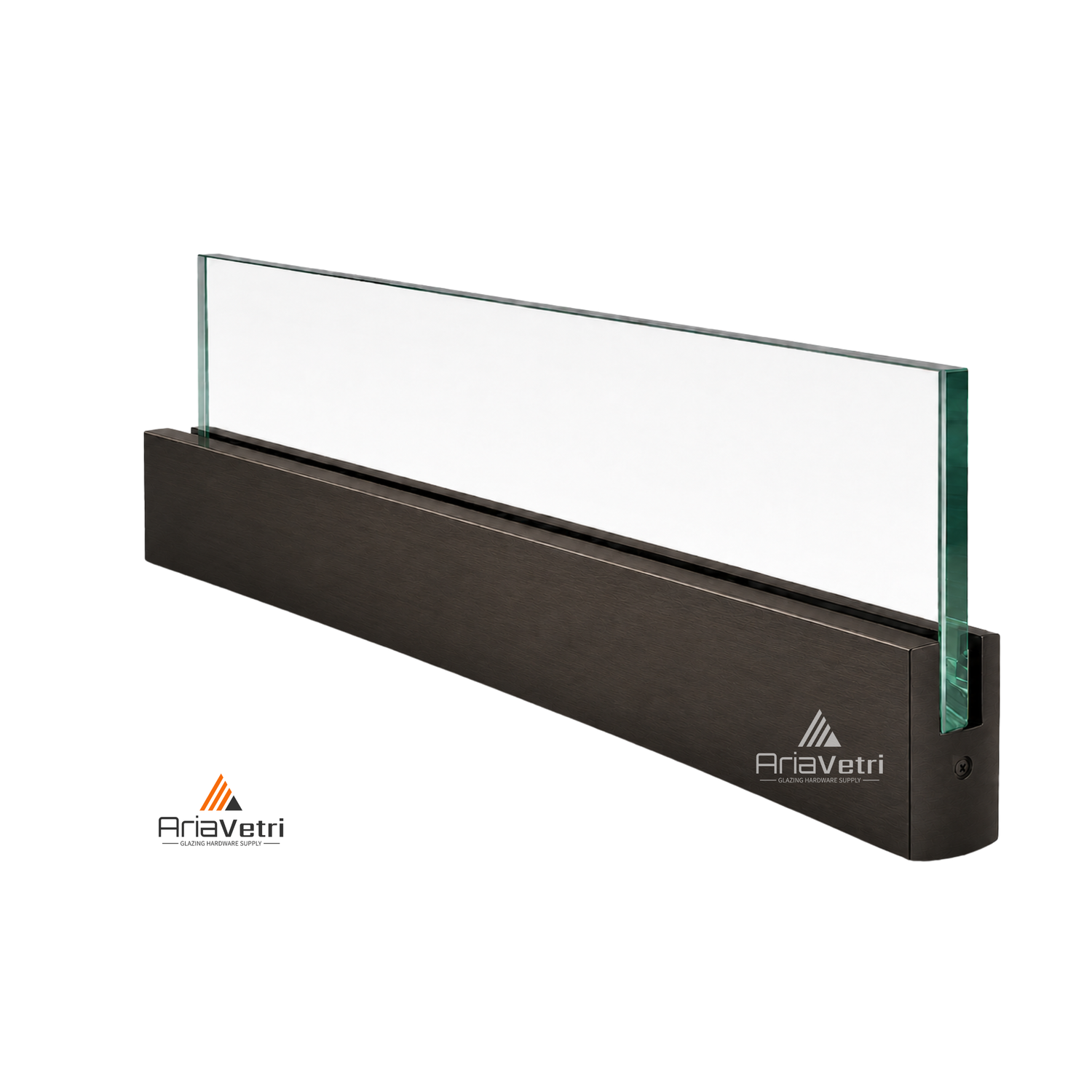

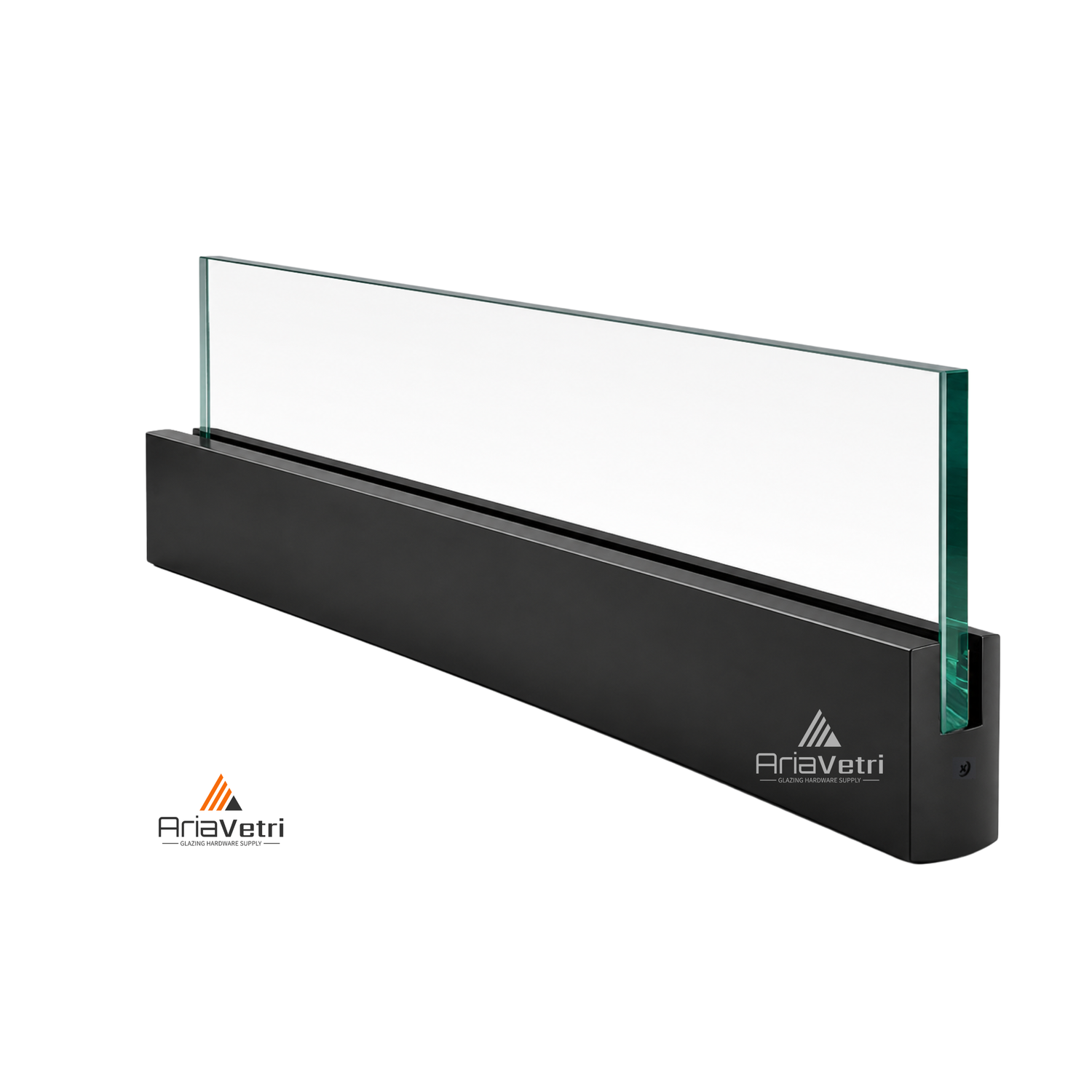

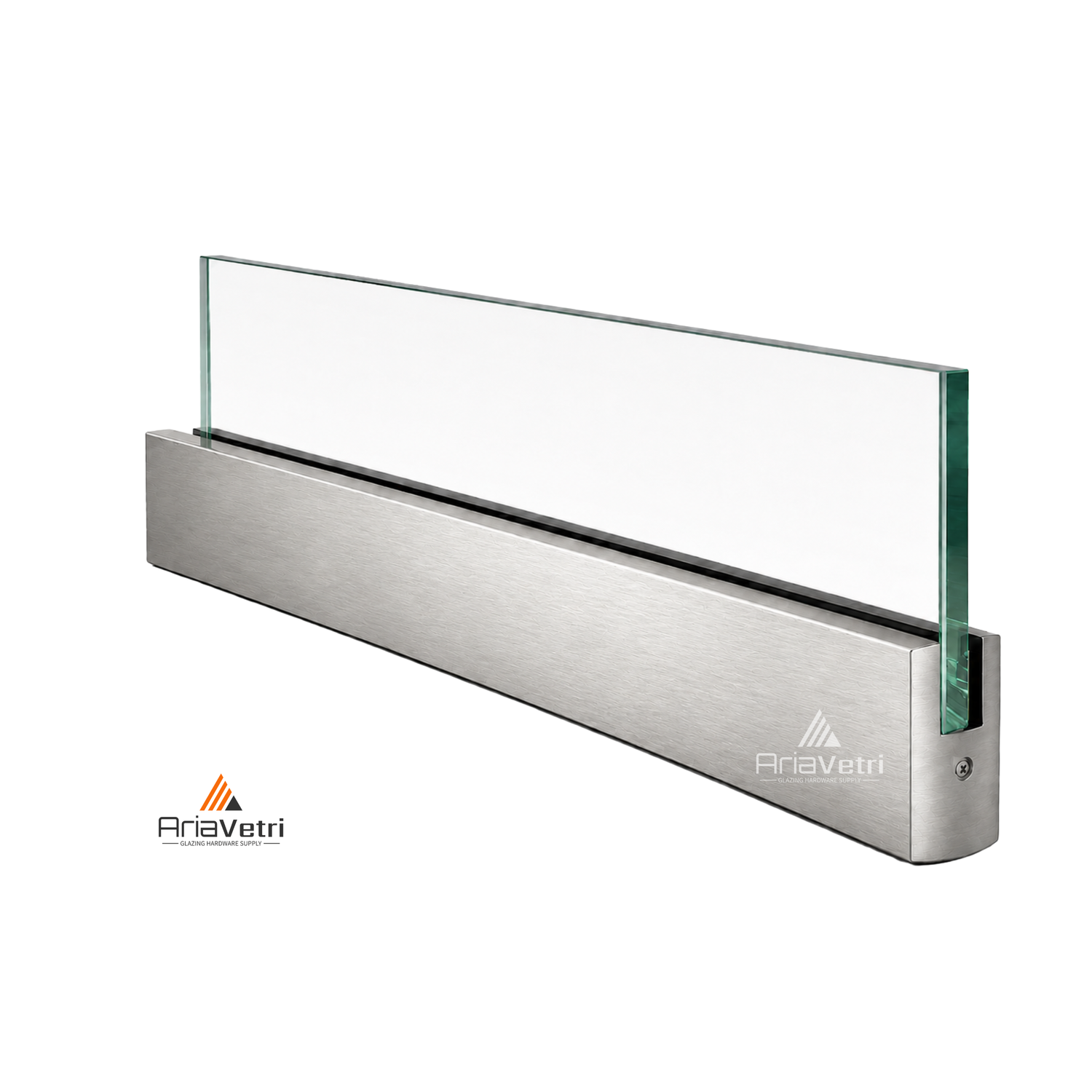

Aria Vetri 35-3/4" long Square Door Rail single or double door entrances with Closer inserted. The rail accommodates 1/2" Tempered glass and is designed to be with NO Lock. Accessories and pivots to be ordered separately. Custom sized can be special ordered.

This innovative door rail comes with The Casma FRENUM Hydraulic (CAS4FX1NL) Hold Open Bottom Patch closer with offset pivot. The closer is concealed in the rail. This door rail is designed for interior doors up to 220 lbs with maximum width of 39-3/8”.

Prop 65

This product may contain chemicals known to the State of California to cause cancer or reproductive harm. Visit P65Warnings.ca.gov for more information.

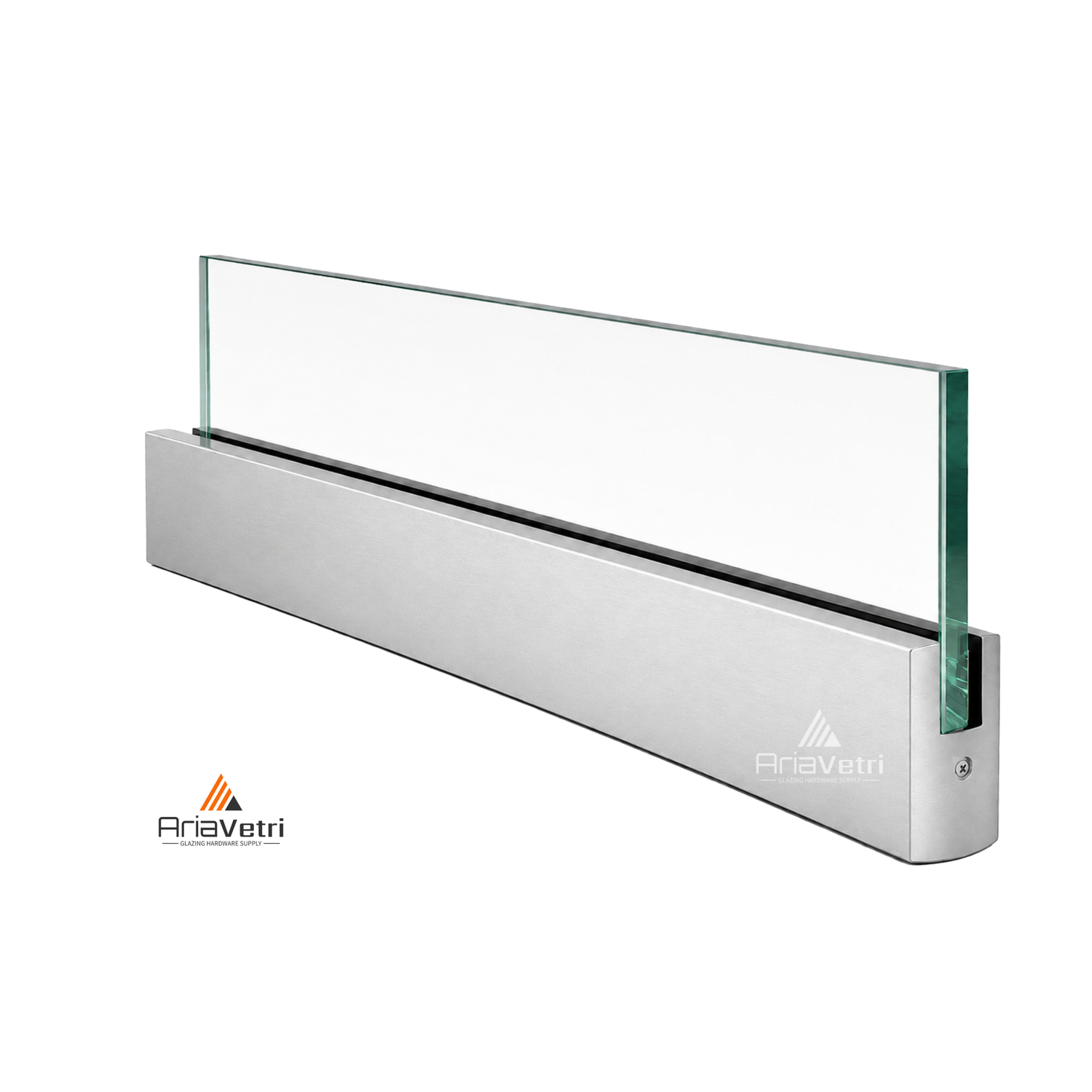

Color: Satin Anodized

Tags: New product, No lock, With closer

Care information

Perform periodic maintenance to help maintain its factory finish.

Delivery and Shipping

Shipping weights are approximate. For shipping costs, add product to your cart and you will find the estimated shipping charges at the checkout.

Collections:

Specifications
  •   Complies with ASA and ANSI Specifications
  • 35-3/4" Length for 1/2" Glass
  • Tempered Glass
  • Glass Securing System
  • Custom Finishes Available
  • Available With and Without Locks
  • Matching Sidelite Rails Available

Closer Specification:

  • Back-Stop at 110° Hold-open at 90°
  • Adjustable bottom pivot and closing speed to suit all installation requirements
  • Complies with ASA and ANSI Specifications
  • 500,000 cycles

Documents

Drawing

Closer Technical Specification

Care Guide
