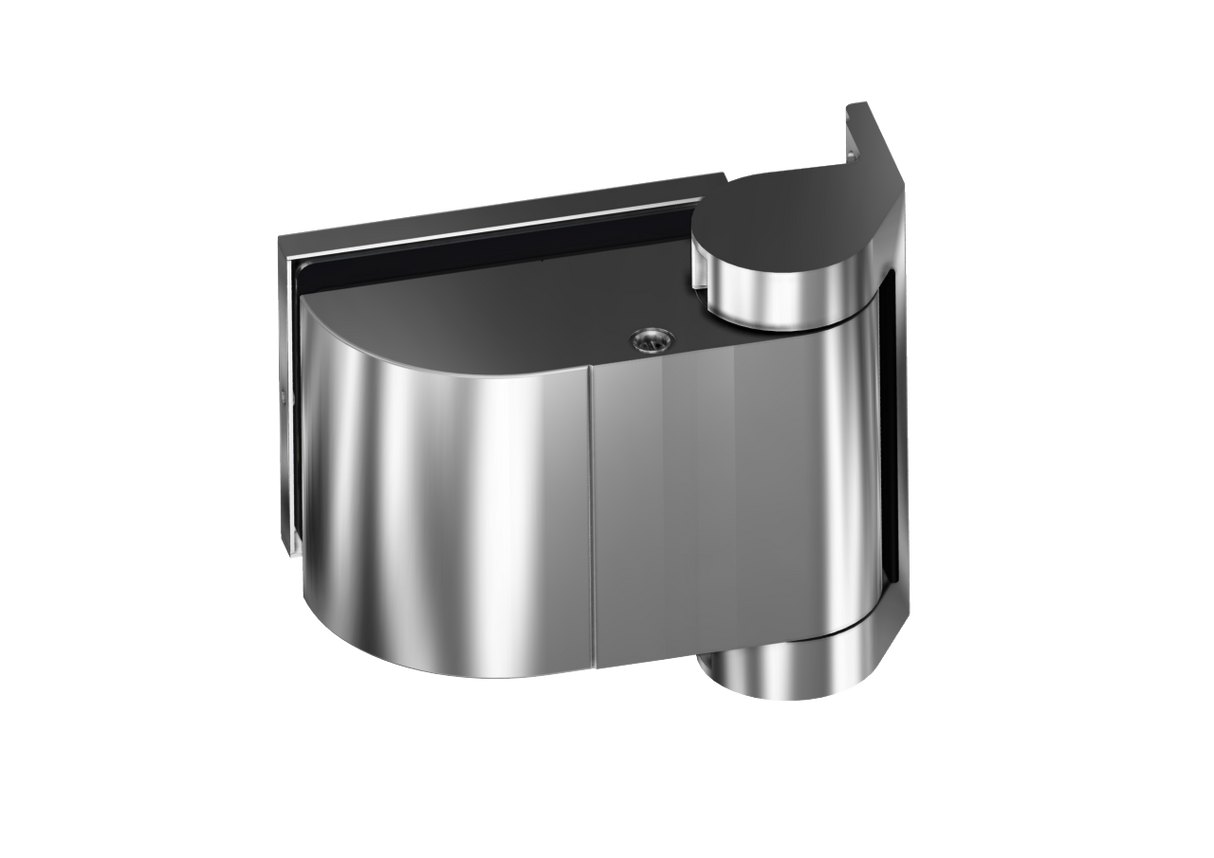

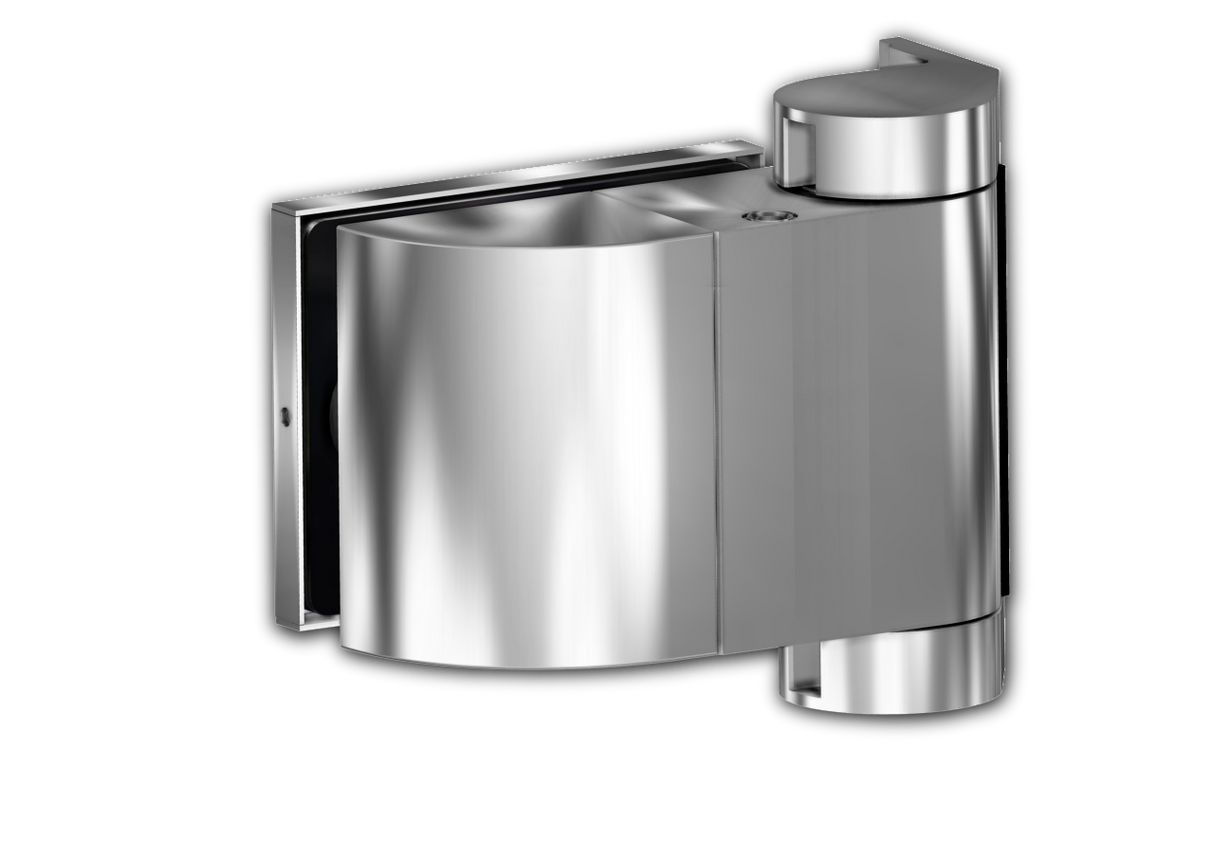

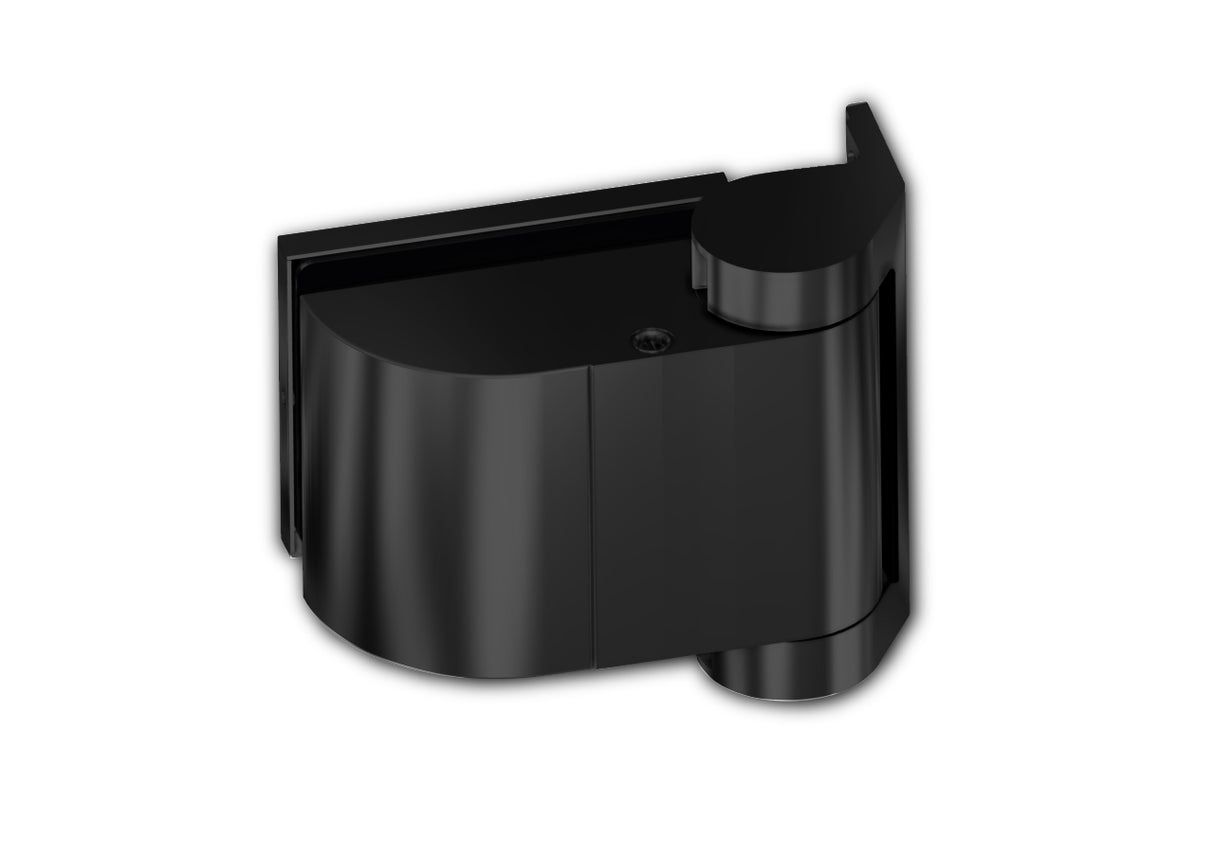

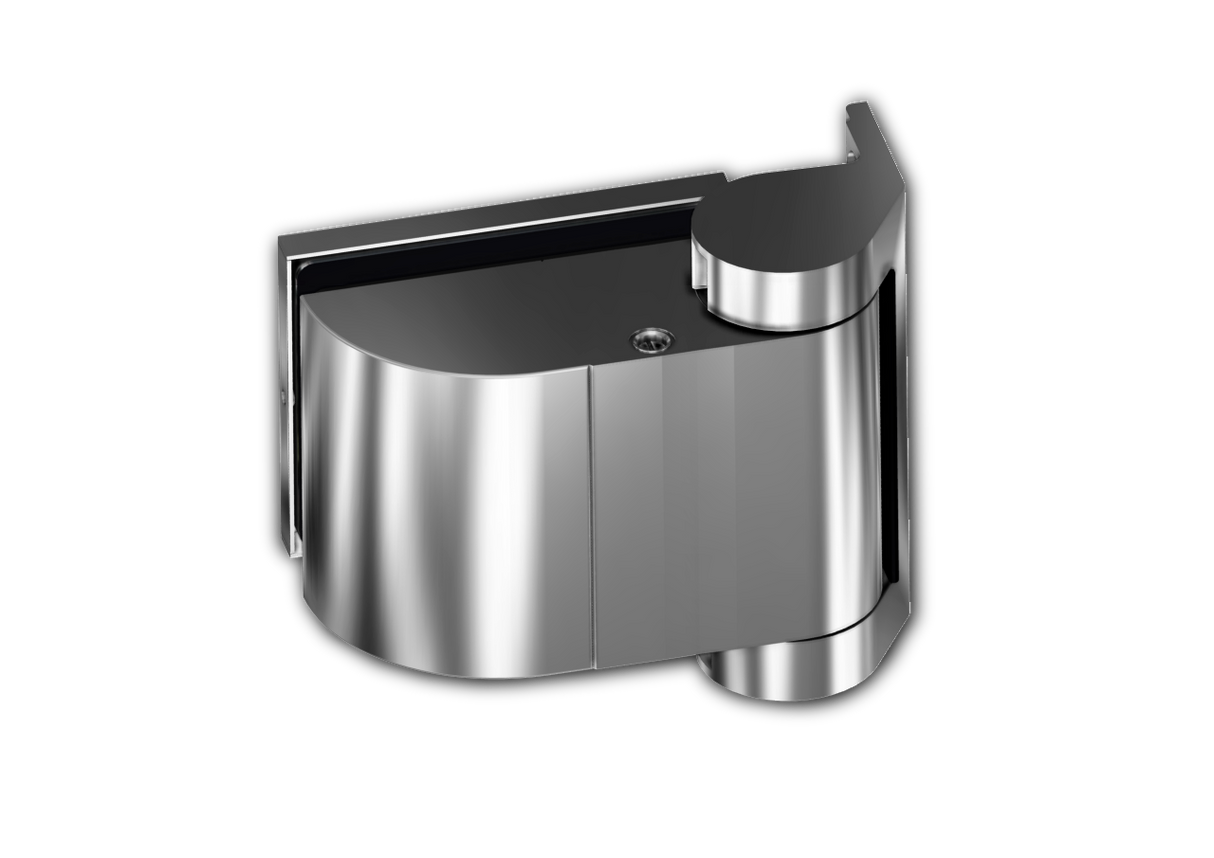

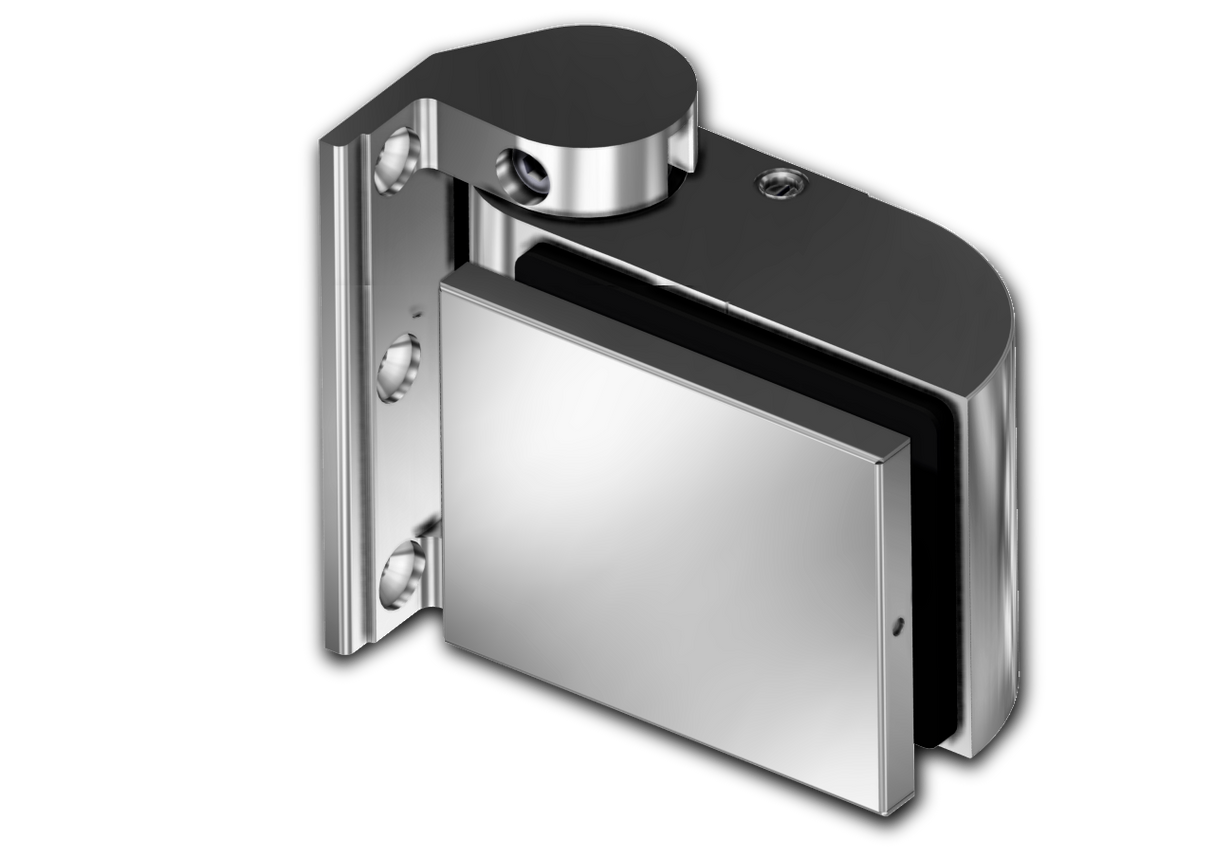

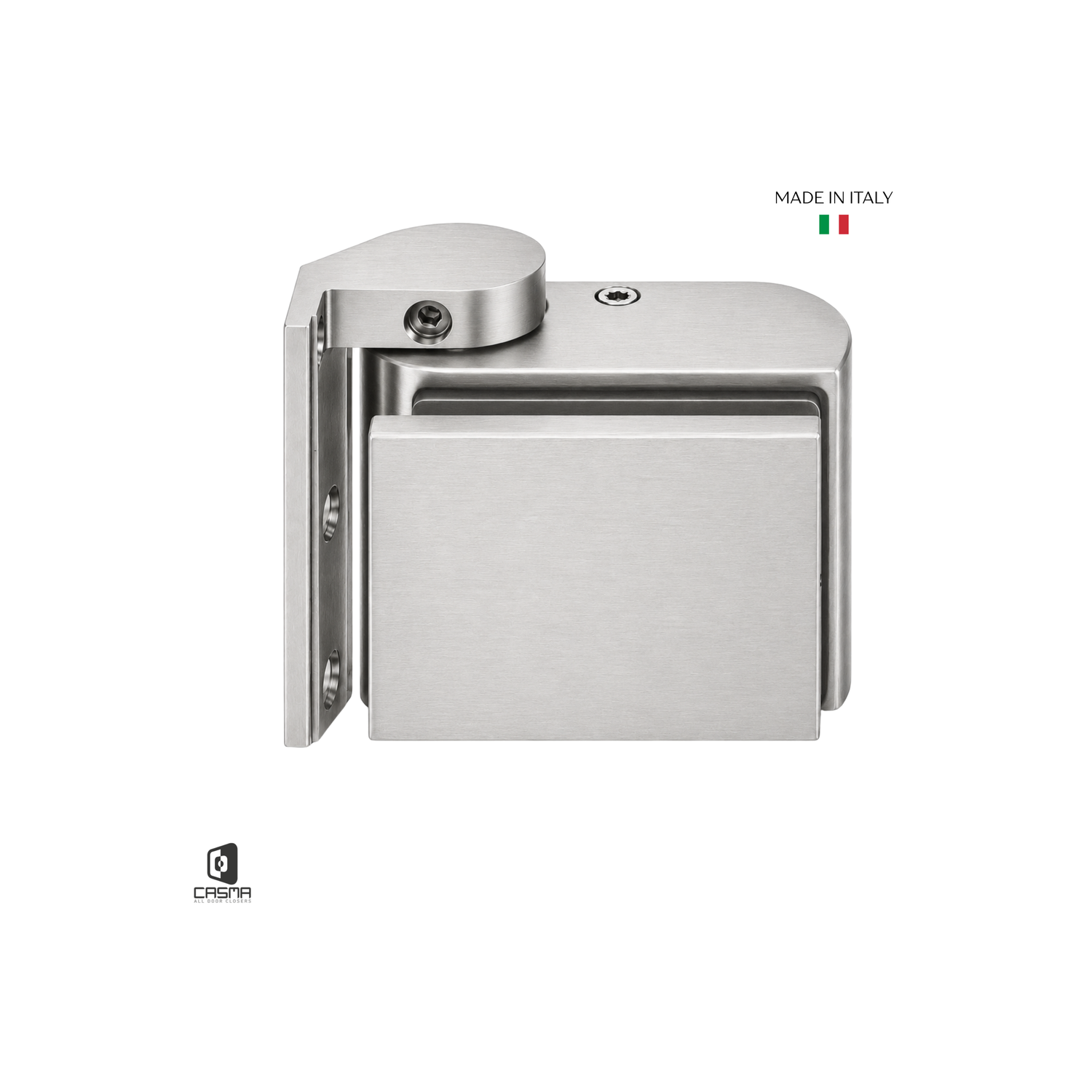

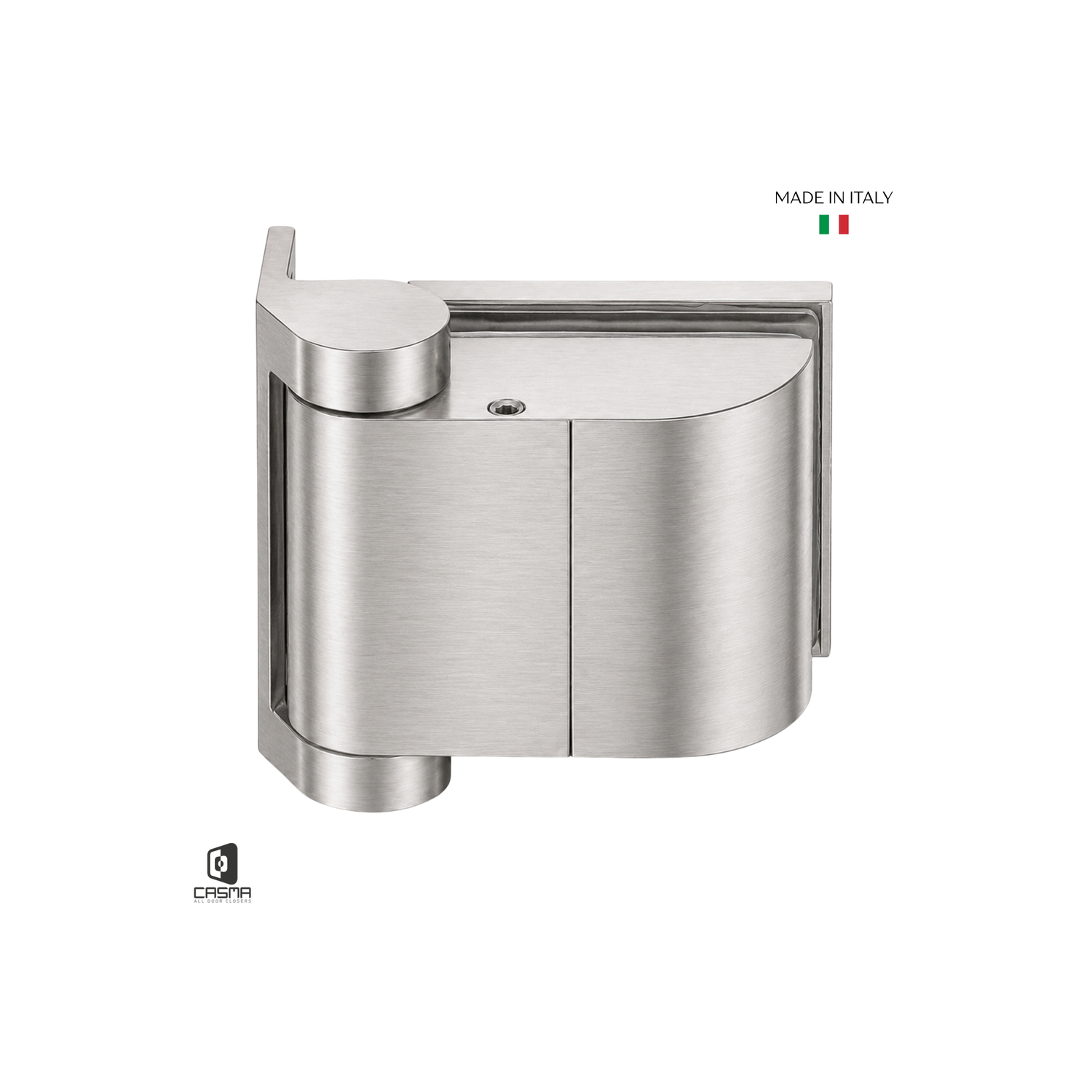

CAS4L81S Latus 80 Round 90 Degree Hold Open Centre Plate Mount Hydraulic Hinge

Latus 80 Round Center Plate Mount Hydraulic Hinges, prioritize safety to guarantee peace of mind for users. Latus 80 Series deliver versatile functionality for glass-to-wall applications, boosting adjustable closing speed and robust construction.

Elevate your space with the reliability and convenience of the Latus 80 Series Hinges Wholly manufactured in Italy. This hydraulic hinge expertly and gently closes glass doors, offering a superior alternative to traditional floor springs and patch fittings. The Latus Series feature a soft-closing function for smooth and quiet closure, extending the door’s lifespan. Renowned for its elegance and practicality, it is extensively employed in office, and interior spaces with glass partitions.

LATUS 80 Hinges are used for glass thicknesses of 3/8”, 1/2” and 9/16”. Maximum Weight capacity and Door Width of the hinges varies for having a hydraulic and a free swinging or having two hydraulics installed on the door.
For optimal door performance, follow these guidelines:

·

• if the door is under 154 lbs. with a maximum width of 35-7/16”, install one hydraulic hinge at the bottom and a free-swinging hinge at the top, or use two free swinging hinges.
• If the door is over 154 lbs. up to 220lbs. with a maximum width of 39-3/8”, use two hydraulic hinges.

When using hydraulic hinges, a stopper must be installed so the door cannot be opened past 90º. We recommend either of the two options bellow or for a wider variety check out:  Aria Vetri Doorstops

• AI307 SINGLE DOORSTOP
• AI308 DOUBLE DOORSTOP
• A200 LOW PROFILE DOORSTOP
